Limited Time SaleUS$56.31 cheaper than the new price!!
| Management number | 218633088 | Release Date | 2026/05/03 | List Price | US$37.54 | Model Number | 218633088 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

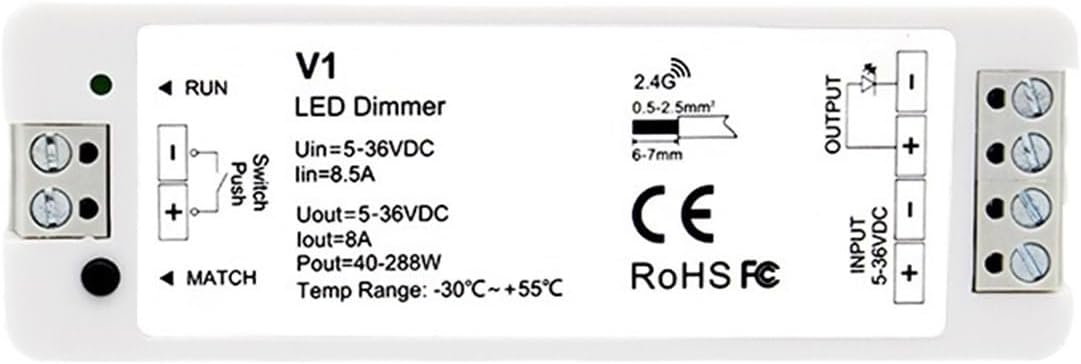

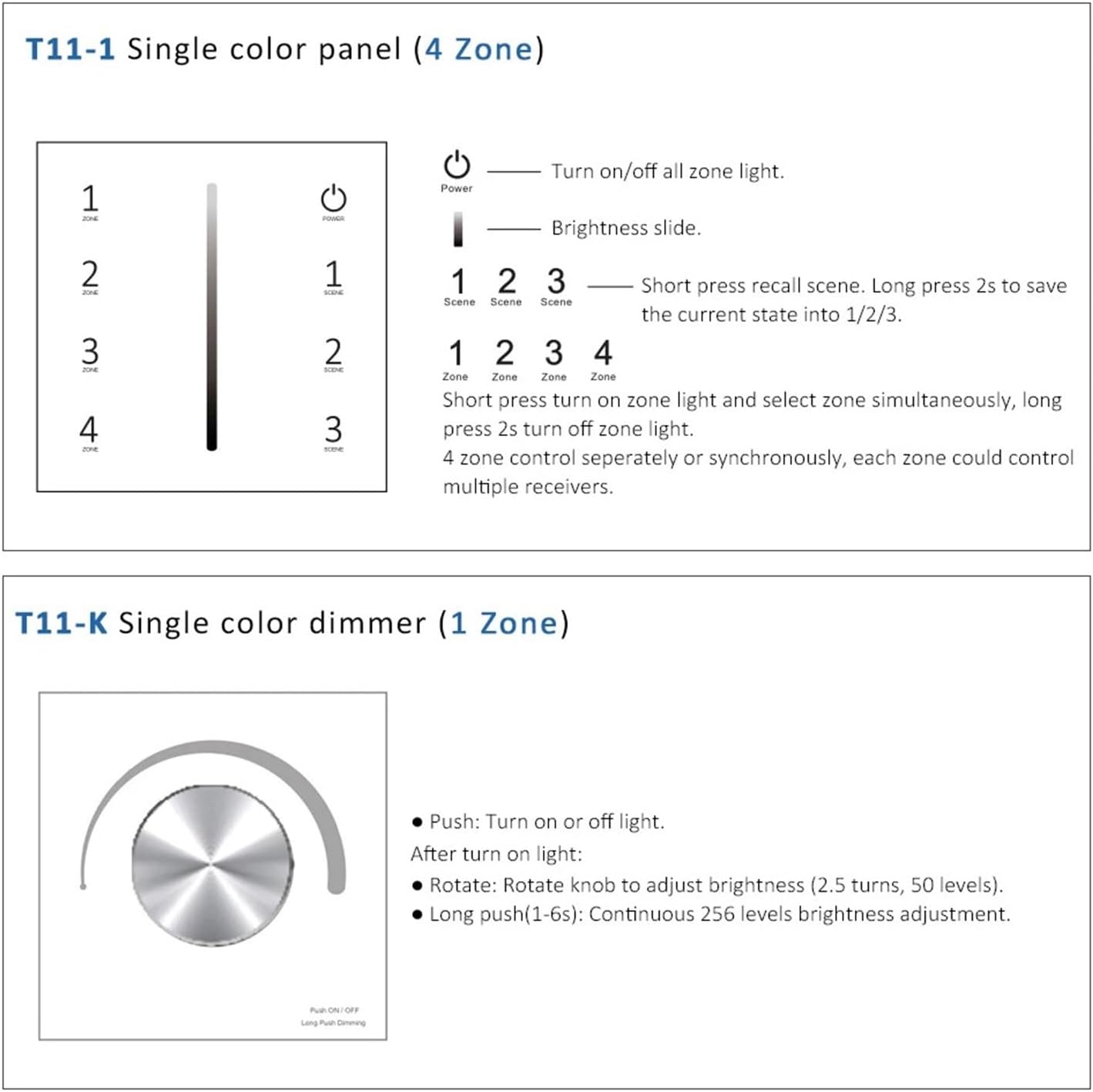

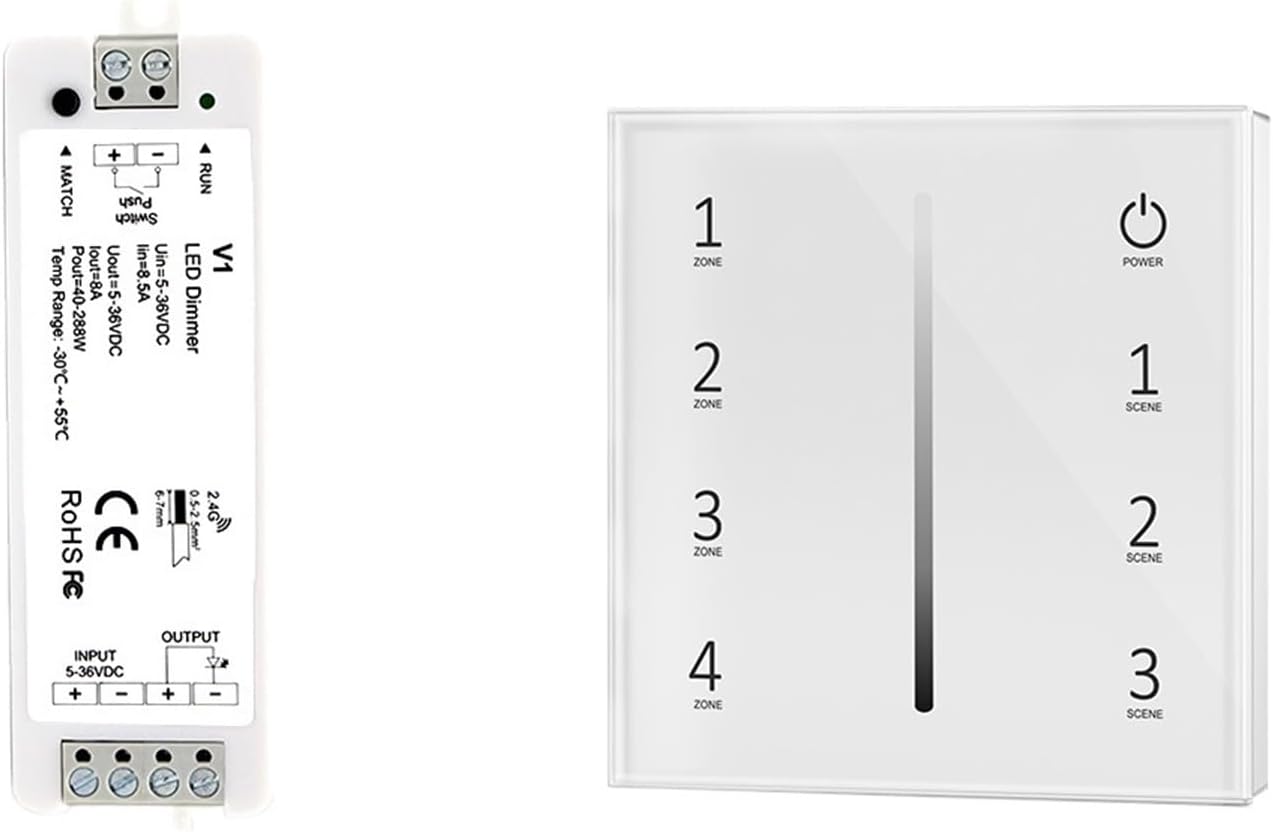

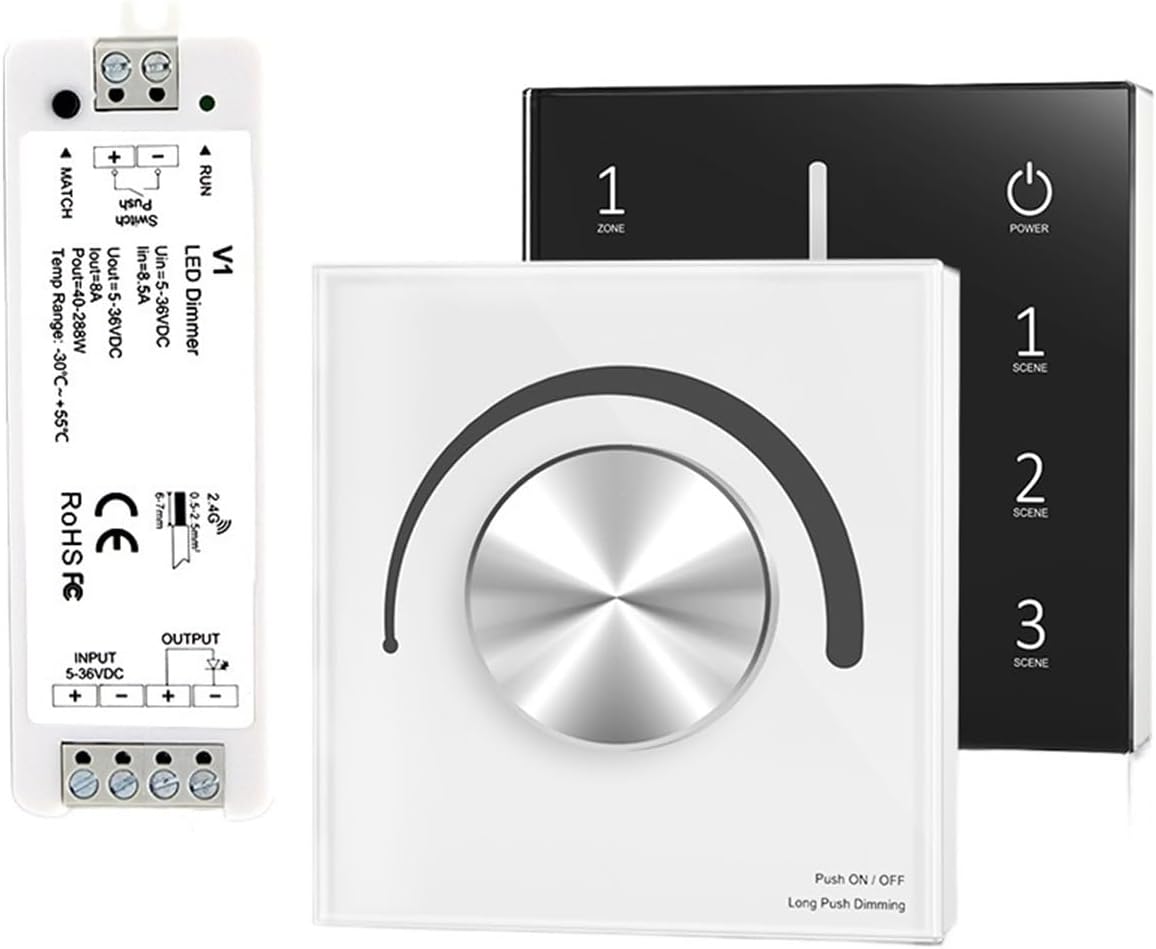

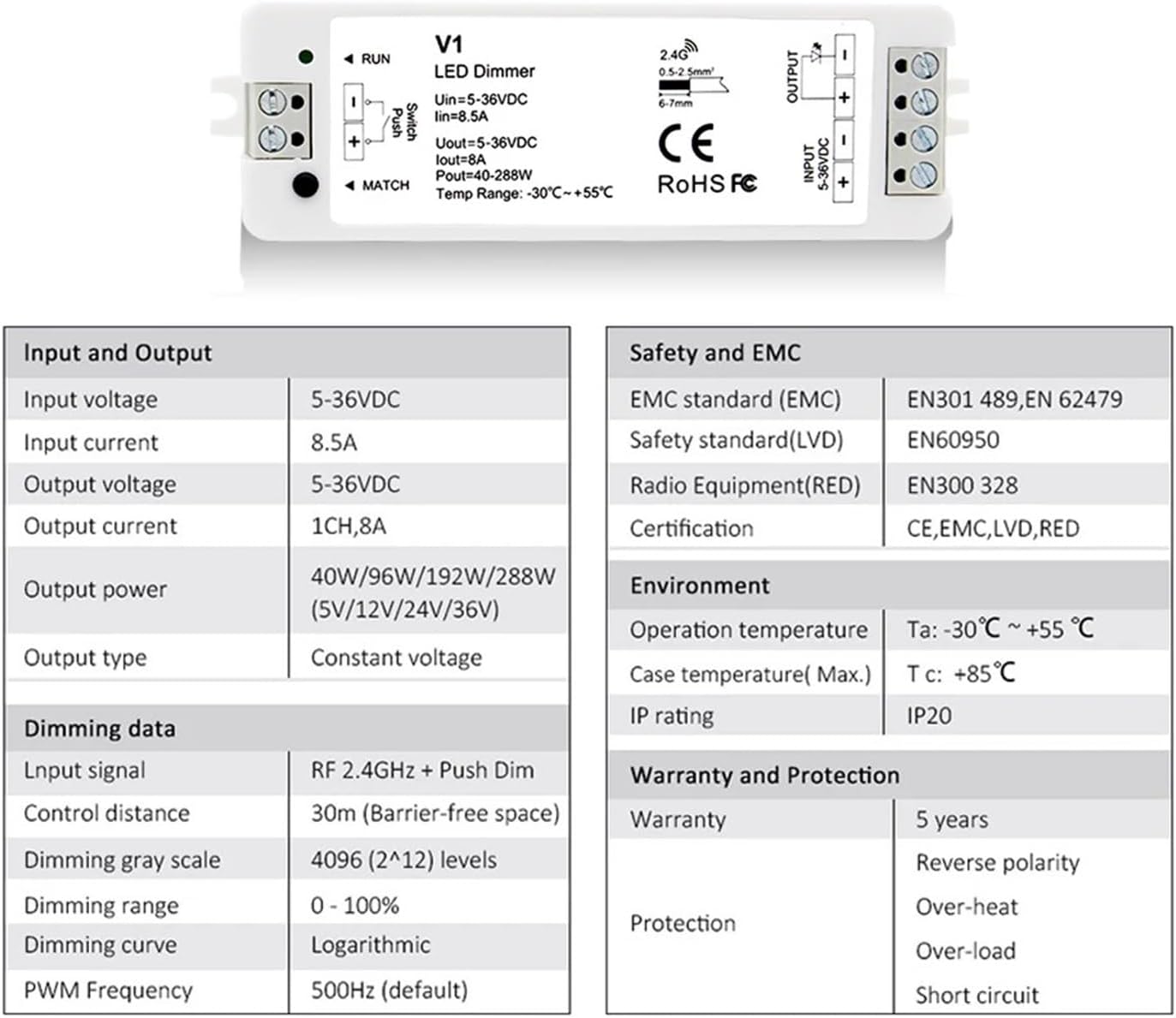

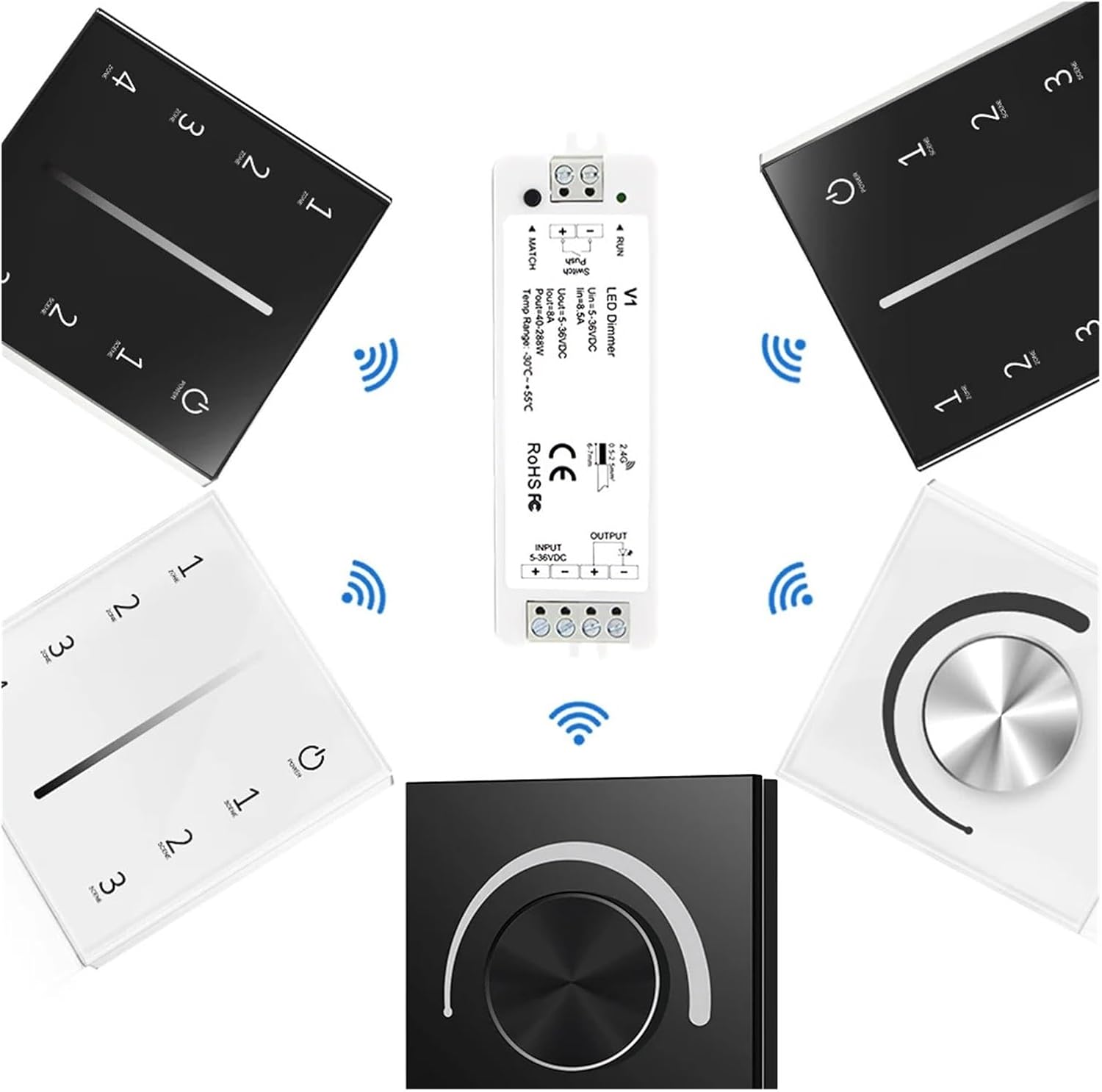

DimmersFeatures of V1 LED Dimmer:4096 levels of 0-100% smooth dimming, no flicker.Pair it with our single zone or multi-zone dimming remote control.Up to 10 remote controls can be connected to one controller.Automatic transmission function: The controller automatically transmits signals to another controller with a control distance of 30m.Synchronize across multiple controllers.Connect an external push button switch to achieve on/off and 0-100% dimming functions.Overheating/overload/short circuit protection, automatic recovery.Technical Parameters:Input voltage: 5-36V DCInput voltage: 5-36V DCOutput current: 8A 1 channelInput signal: 2.4GHz + push dimmerDimming range: 0 -100%PWM frequency: 500Hz (default)Touch screen remote control features:(MJJCLED-T11-1/T11-K)Ultra-sensitive high-strength glass touch and rotating panel with touch-colored slider and backlight in the centerAchieve smooth, accurate color adjustments with the touch of a color slider.Touch keys with LED indicator.Available in white and black glass panelsMatching remote controlThe end user must pair the remote control with the receiver before use. The steps are as follows:*** Matches:To turn on or off the lights, immediately press the panel switch button for 5 seconds, and then press any area button on the remote control within 5 seconds.LED indicator light flashes 3 times quicklyIt means the match is successful.*** delete:Turn on the light, turn off the light, and immediately press the panel switch key for 10 seconds to delete all matches.LED indicator light flashes 6 times quicklyMeaning all matching remotes are deleted.The main function:One V1 dimming receiver can control up to 10 remote controls within a distance of 30m, and the remote controls are control.Automatic launch:A V1 dimming receiver can transmit the signal of the remote control to another receiver within 30m,As long as there is a receiver within 30m, the remote control distance can be unlimited.Automatic synchronization:Multiple receivers can work synchronously when controlled within a distance of 30mvia the same remote control.Receiver placement provides communication distance up to 30m. However, we recommend for indoor applicationsThe distance between receivers should not exceed 15m.MJJCLED-T11-K can only control all areas to work synchronouslyMJJCLED-T11-1 can synchronize and independently control the work of each areaDimensions are designed to EU standardsThe touch screen remote control only has high voltage input and is directly connected to AC 100-240V (LN).Use as wall panel remote control.If you want to connect a longer LED strip, please read the following connection diagram.Push the dimmer switch:Push-button switches can also be added for dimming.The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switches.dog:Turn lights on or off.Long press (1-6 seconds):Press and hold for stepless dimming.With each long press, the brightness moves in the opposite direction.Dimming memory:When turned off and on again, the lights will return to their previous dimming level, even in the event of a power outage.Synchronize:If multiple controllers are connected to the same button switch, if pressed and held for more than 10 seconds, the system will be synchronized and all lights in the group will be dimmed to 100%.This means no additional synchronization wires are required in larger installations.We recommend that the number of controllers connected to push button switches should not exceed 25,The maximum length of the wire from the push rod to the controller should not exceed 20 meters.
| Brand | GLOUPECT |
|---|---|
| Color | T11-K Black Only |
| Material | ABS |
| Item Weight | 6.3 ounces |
| Part Number | GLOUPECT |
| Manufacturer | GLOUPECT |
| Assembled Width | 11 centimeters |
| Assembled Height | 11 centimeters |
| Assembled Length | 11 centimeters |
| Item model number | GLOUPECT |
| Batteries Required | No |
| Product Dimensions | 4.33 x 4.33 x 4.33 inches |
| Item Package Quantity | 1 |
