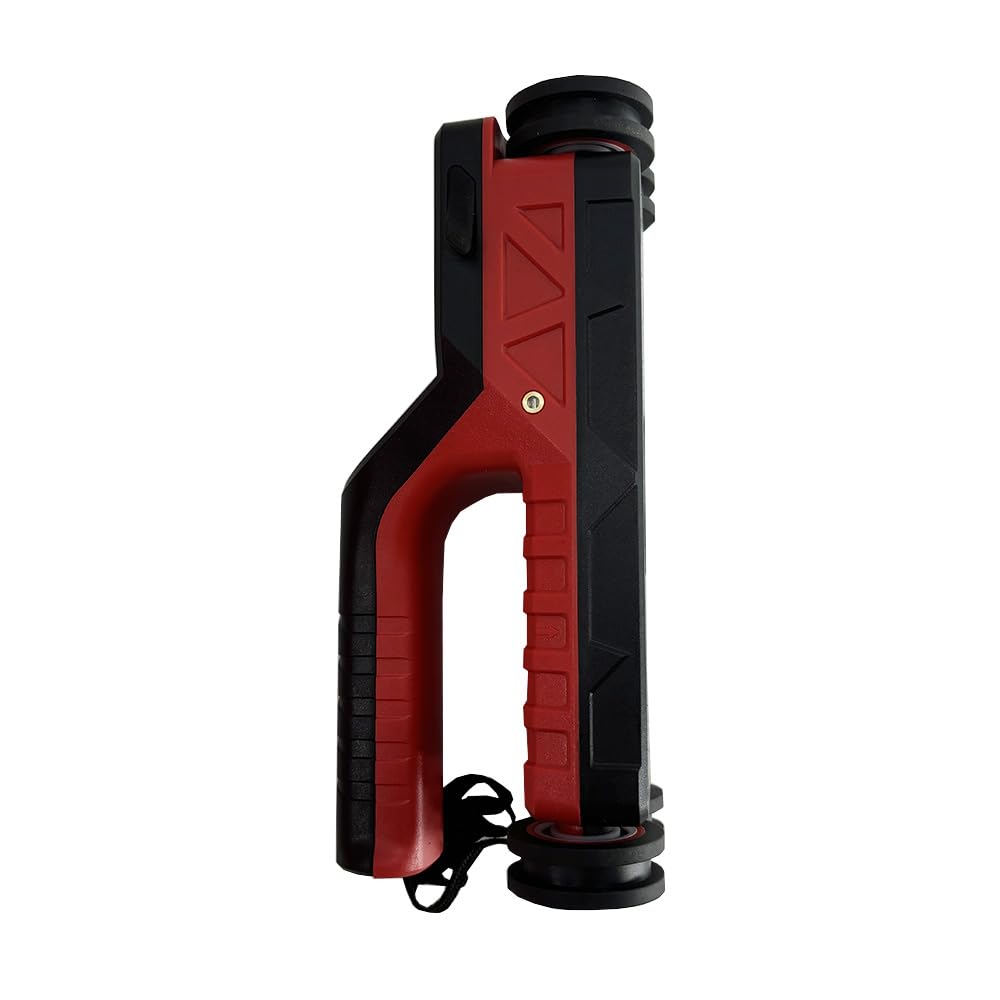

Integrated Rebar Locator Rebar Scanner Concrete Reinforcement Detector with Rebar Diameter Range 6-50mm Protective Layer Thickness Range 1mm-120 mm 5mm-210mm Two-Dimensional Positioning Function

Product features:◆Measure the thickness of the concrete protective layer◆Positioning of reinforcement◆Estimated rebar diameter◆Test rebar spacing, display rebar grid distribution,◆Detection of magnetic and electrical conductors in non-magnetic and non-conductive media. Technical features:◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center;◆Two-dimensional l-a-s-e-r positioning, real-time display of rebar position and adjacent rebar center line;◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core;◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively.◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer;◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation; Specification:◆1. rebar diameter setting range: φ6mm~φ50mm◆2. Protective layer thickness measurement (nominal) range:The first range (nominal) range: 1mm ~ 120mmThe second range (nominal) range: 5mm ~ 210mm;◆3. Protective layer thickness calibration range: 0 ~ ±50 mm;◆4.Measuring range of different rebar diameters:Range rebar diameter(mm):φ6～φ8----φ10～φ20----φ22 and abovevSmall range（mm）:1～60----1～80----1～120wide-range（mm）:5～120----5～160----5～210◆5.different thickness error range:Range error range（mm）:±1----±2----±4Small range（mm）:1～80----81～120----/wide-range（mm）:5～80----81～120----121～210◆6. Diameter estimation range: φ6mm~φ50mm◆7, the maximum error of diameter estimation (mm) : ±1 mm◆8, distance accuracy: ±1mm◆9, scanning mode: conventional scanning, procedure scanning, grid scanning, profile scanning, fine scanning, image scanning◆10, power supply: built-in large capacity lithium battery◆11, operation language: Chinese and English switch◆12, backlight brightness: 8 adjustable◆13, theme setting: 5 kinds of theme choice◆14, working temperature: -10℃ ~ +50℃◆15, host volume: 219mm×92mm×106mm◆16. Weight: 0.6kg◆Standard accessories：host, charger, software CD, packing case According to the standard:◆GB 50010-2010 Code for Design of Concrete Structures (2015 edition)◆GB 50204-2015 "Concrete structure engineering construction quality acceptance Code"◆GB/T50344-2019 "Technical Standard for Testing Building Structures"◆JGJ/T152-2019 "Technical Specification for Inspection of rebars in Concrete"◆DB11/T365-2016 "Electromagnetic induction method test rebar protective layer thickness and rebar diameter technical specification"◆GBT/50784-2013 "Technical Standard for On-site Testing of Concrete Structures"

• ◆The thickness of reinforcement protective layer, the position of reinforcement and the spacing of reinforcement are displayed on the same screen. Automatic interpretation of rebar position center;
• ◆Two-dimensional l-a-s-e-r positioning, real-time display of rebar position and adjacent rebar center line
• ◆Display frame and indicator signal value multiple reminders, convenient rebar positioning and drilling core;
• ◆The pattern dense reinforcement algorithm is optimized to reduce stirrup interference effectively.
• ◆Intensive waveform detection greatly improves the accuracy of the number of rebars and the thickness of the protective layer;
• ◆Reverse compensation, repair the complex site automatic calculation, compensate the protection layer data deviation;
• ◆Data can be exported from a USB flash drive
