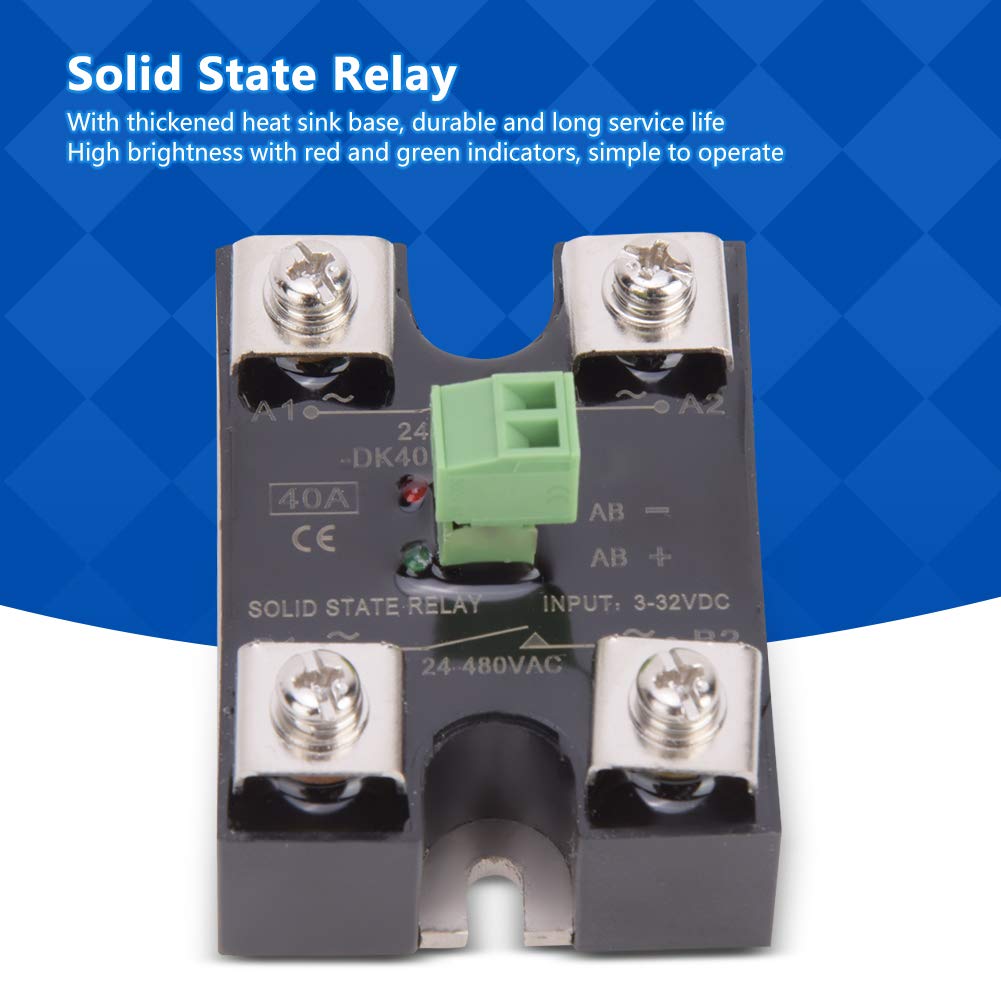

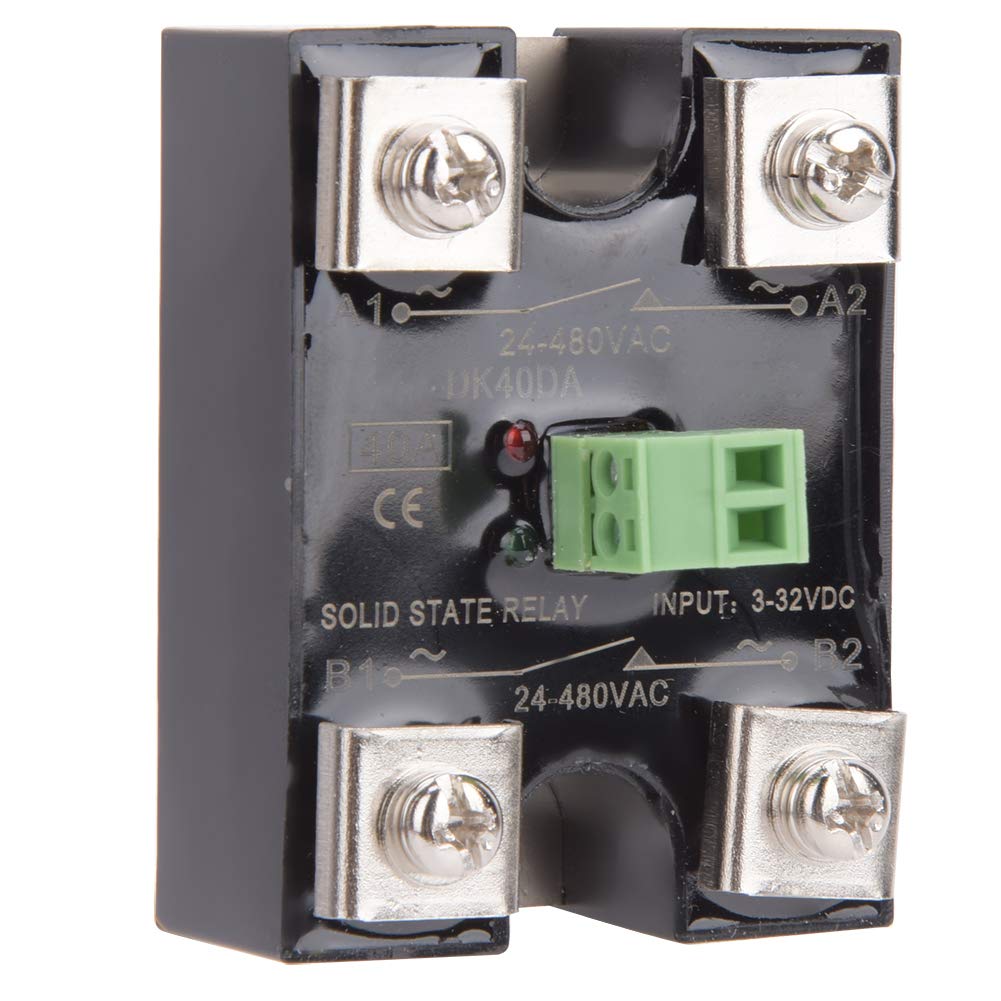

Berm Solid State Relay, Single Channel DC Control & Dual Channel AC Control SSR Relay 24-480VAC (BERM-DK40DA)
4.0 (22 items)
Limited Time SaleUS$11.95 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221547868 | Release Date | 2026/05/03 | List Price | US$7.96 | Model Number | 221547868 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Item Type: Solid State RelayBrand: BERMModel: BERM-DK10DA / BERM-DK25DA / BERM-DK40DA (optional)Rated AC Current: 10A / 25A / 40A (optional for corresponding models)Rated AC Voltage: 24-480VACControl Voltage: 3-32VDCControl Current: 20mAControl Method: DC control ACType: Single DC Control Dual ACIndicator: Red + greenProduct Size: Approx. 58 x 44 x 28mm / 2.3 x 1.7 x 1.1inPackage List:1 x Relay1 x Green Terminal
- 【Features】 The relay has brass contacts, good contact and good conductivity. Flame-retardant shell, thick heat sink base, sturdy and long service life.
- 【Optional Model】 The relay has three models for you to choose: BERM-DK10DA / BERM-DK25DA / BERM-DK40DA. Rated AC current: 10A / 25A / 40A (the corresponding model is optional).
- 【Easy To Use】 The solid state relay is single-channel DC control, dual-channel AC control, with high-strength screws and red and green indicator lights, easy to operate.
- 【Installation】 The DC to AC solid state relay adopts the bolt installation method, which is easy to install, and is an important part of the temperature controller and other mechanical control systems.
- 【SSR Application】 Solid state relays are very commonly used in automatic process control applications and are essential components for temperature controllers and other mechanical control systems.
| Brand Name | Hilitand |
|---|---|
| Part Number | Hilitandu0ne4d97ti-11 |
| Coil Voltage | 480 Volts |
| Contact Type | 2no 2nc |
| Manufacturer | Hilitand |
| Mounting Type | Surface Mount |
| Connector Type | Screw |
| Current Rating | 40 Amps |
| Operation Mode | Automatic |
| Contact Material | Brass |
| Number of Terminals | 2 |
| Contact Current Rating | 40 Amps |
| Maximum Switching Current | 40 Amps |
