Alpinetech 3 Buttons Control Station - Control Box, Self Locking Emergency Stop and/or Momentary Push Button Switches (Emergency_Stop and 2 Push Buttons)
4.1 (115 items)
Limited Time SaleUS$19.77 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221434280 | Release Date | 2026/05/03 | List Price | US$13.18 | Model Number | 221434280 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

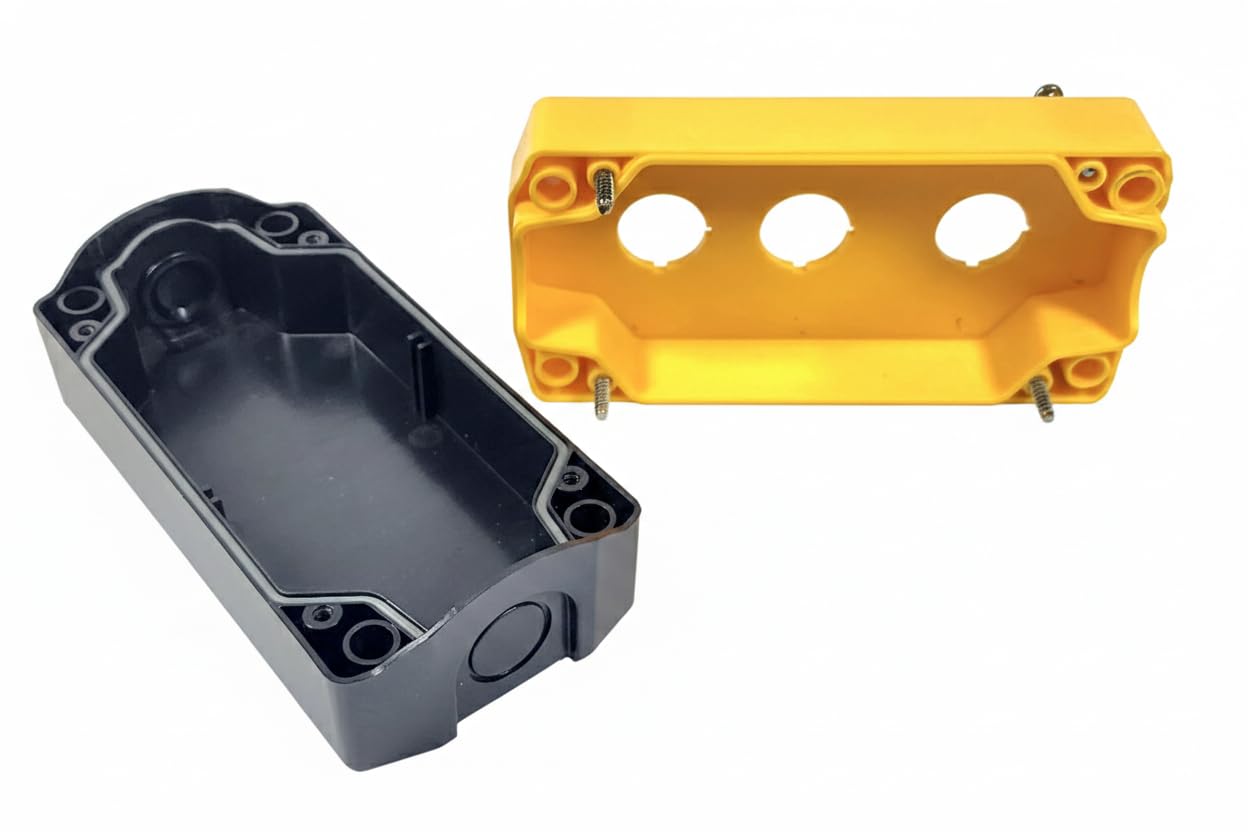

3 Buttons Control Station Box Size: 6in x 3in x 2.25in (L*W*H) Mounting Screw Hole Diameter: 5mm Switches Information Mounting Hole Size: 22mm Buttons Types: E-Stop and Round Flush Button Color: Green, Yellow, RedHead Diameter: E-Stop: 1" in; Round Flush: 1" in Operation Type: E-Stop: Maintained/Latching (Push to Lock, Turn to Release); Round Flush: Momentary Switch Contact: E-Stop: 1NC; Round Green: 1NO; Round Yellow: 1NO_1NC Terminal Type: Screw Ui: 600V; 1TH: 10A Voltage rating: 120VAC 6A / 240VAC 3A Protection Rating: IP65 Mechanical Life: 1,000,000 Panel Thickness: 1-10mm Depth Behind Panel: 2"

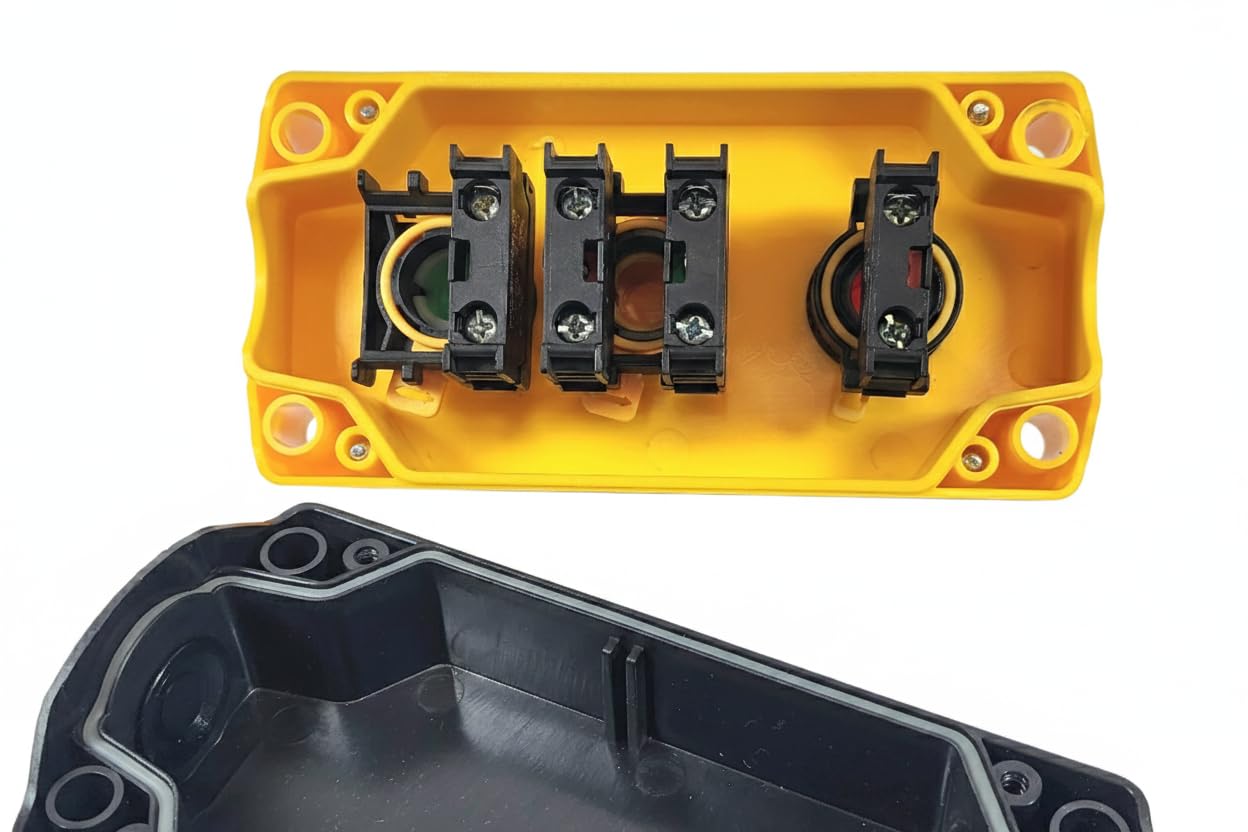

- (Included) Control Box, E-Stop Self Lock (Red) and Round Flush Momentary Switches (Yellow, Green).
- Hole Diameter : 22mm / 0.87"; Button Diameter: E-Stop Self Lock (1" inch); Round Flush (1" inch)
- Action Type: E-Stop Self Lock - Maintained/Latching (Push to Lock, Turn to Release); Round Flush - Momentary Push Button
- Contact Type: E-Stop 1NC; Round Green 1NO, Round Yellow 1NO_1NC; Insulation Voltage: Ui 600V; Thermal Current: 1th 10A; Short-Circuit current: 1000A; Contact resistance: 50 mΩ max.
- (Rating) AC-15: 120V 6A, 240V 3A; AC-12: 480V 1.5A, 600V 1.2A; DC-12: 120V 2.2A, 240V 0.6A, 480V 0.4A
- Safety Standards: UL listed, CSA Certified and TUV Approved; Made in Taiwan
- Industrial Grade for Tough Environment. (Life) Push button: 1 million operations; (Life) Contact blocks: 1 million operations; IP Enclosure: IP65
- Modular Design for Easy Installation and Wiring
| UPC | 742230467535 |
|---|---|
| Model | CB-B3 |
| Terminal | Screw |
| Brand Name | Alpinetech |
| Unit Count | 1.0 Count |
| Item Weight | 8 Ounces |
| Switch Type | Push Button |
| Circuit Type | 2-way |
| Contact Type | Normally Closed, Normally Open |
| Manufacturer | Alpinetech |
| Material Type | Plastic, Silver |
| Mounting Type | Station Box Mount |
| Connector Type | Screw Terminals |
| Current Rating | 10 Amps |
| Operation Mode | ON-OFF |
| Controller Type | Push Button |
| Item Dimensions | 6 x 3 x 3 inches |
| Number of Items | 3 |
| Contact Material | Silver |
| Operating Voltage | 600 Volts |
| Specification Met | CSA, TUV, UL |
| Included Components | Control Box, Push Button Switches |
| Number of Positions | 2 |
| Insulation Resistance | 50 Milliohms |
| Upper Temperature Rating | 60 Degrees Celsius |
| International Protection Rating | IP65 |
