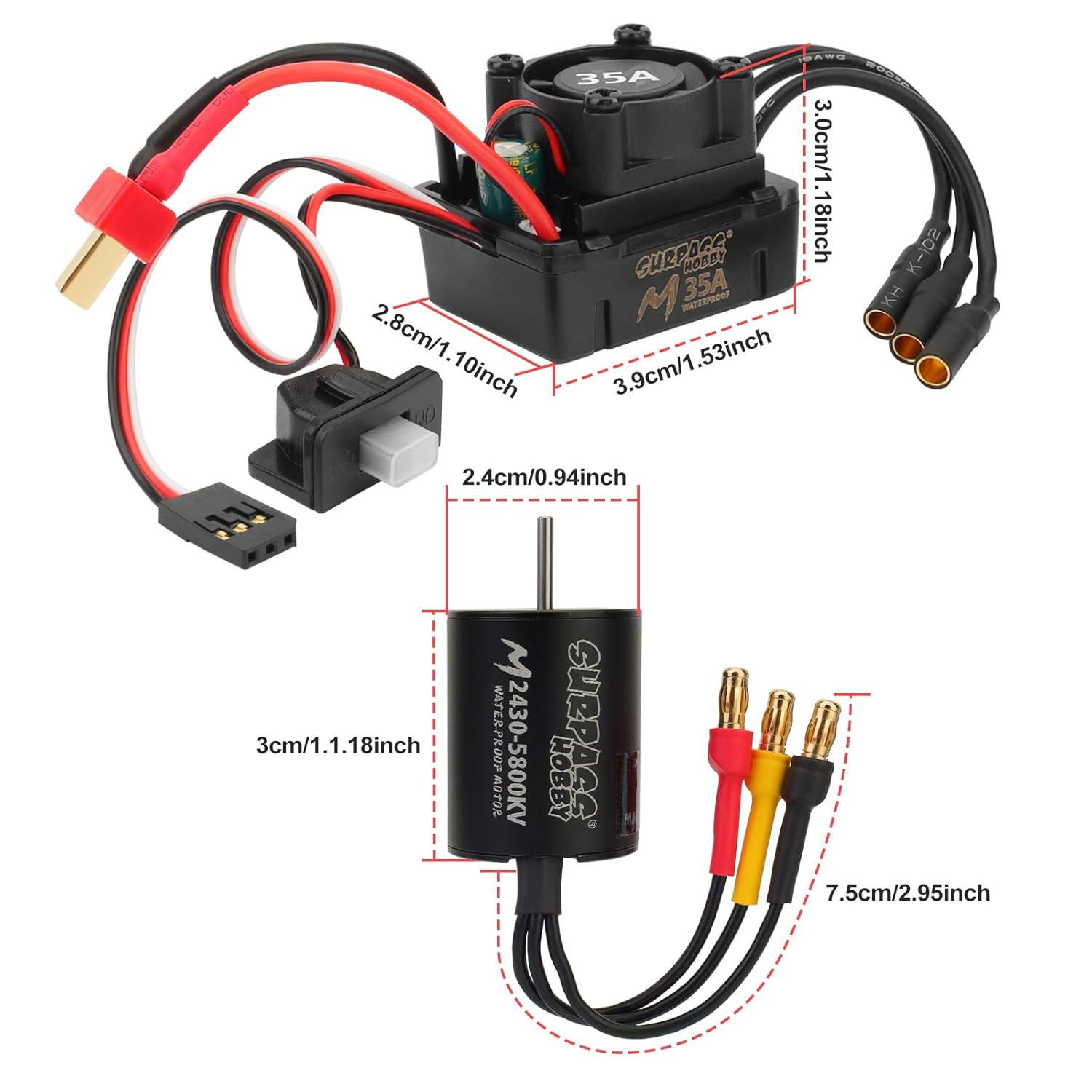

2430 5800KV Brushless Motor 35A ESC Combo, Waterproof Surpass Hobby Sensorless Motor and Electric Speed Controller for 1/16 1/14 RC Car Truck

FEATURE:1.4 Pole 12 Slot Hi-torque rotor design,stable output power.2.High hardness aluminum CNC case,0.35mm stator.3.High Purity High temperature resistance Copper Windings Maximizes Efficiency .4.High precision and high quality ABEC5 large bearing, smooth and wear-resistant.5.Removable/replaceable explosion-proof high-precision balancing rotor.6.Fits all 1/16th or1/18th scale BL cars,M2.5 or M3 screw mounting holes1.Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water; Clean and dry it soon after the use for avoiding the connectors get rusty.)2.Specially designed for RC car with excellent start-up, acceleration and linearity features.3.Compatible with sensorless brushless motor.4.The strong resistant current capability,excellent heat dissipation.5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery /Throttle signal loss protection / Motor blocked protection.6.Low voltage cut-off protection the motor emits"Beep-Beep" and the LED flashes.7.Built-in switch-mode BEC 5.3V/2A (M35A Built-in analog-mode BEC 5V/2A) for usage with high torque and high voltage servos.8. Easily programmed and compatible with pocket-sized program card.WARNINGS:1.Before using , Ensure that the power system is reasonable. Unreasonable power matching will cause the motor to be damaged due to overload.2.Do not over tighten the screws when installing the motor. Be sure to use the appropriate mountings crews.3.Before connecting the motor, Ensure that The insulated parts are well treated, Short circuit will destroy the product.4.Full throttle operation is prohibited before the gear is installed. High-speed operation without load may damage the motor.5.Be sure to connect the components correctly. Wrongly connected remote control car may not work properly, or the components may be damaged or other unpredictable conditions.6.Avoid the motor operating temperature exceeding 130°c (266'F). High temperature may cause the rotor to demagnetize and damage motor.7.Do not touch the motor after use to avoid overheating and scalding. Wait for the motor to cool down completely before using it.

• ⚡2430 5800KV brushless motor is suitable for all 1/16 or 1/18 scale brushless cars with M2.5 and M3 screw mounting holes.

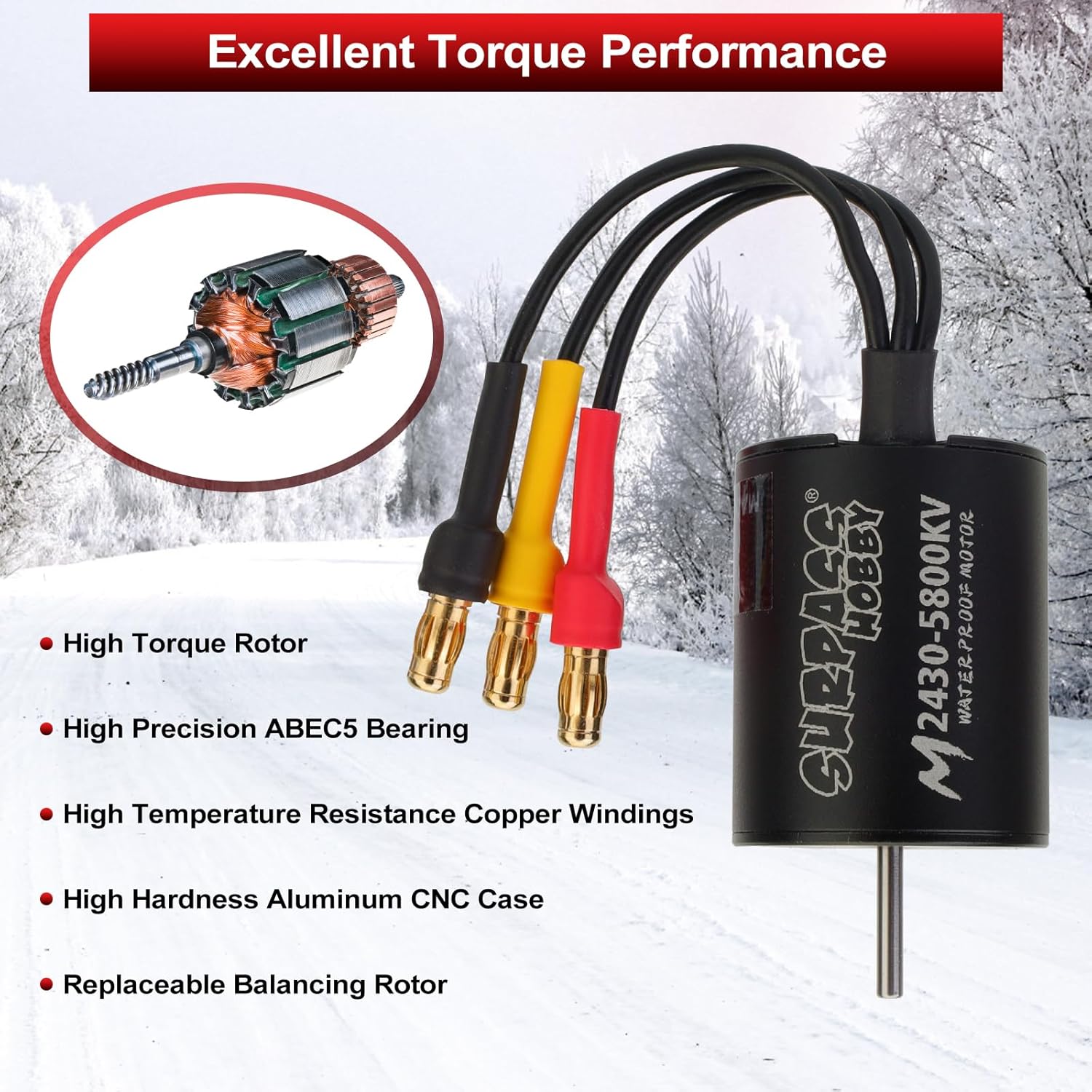

• ⚡The motor case is constructed from high hardness CNC aluminum and 0.35mm thickness silicon steel sheet. The high purity and high temperature resistant copper coil effectively provides high efficiency, while the ABEC5 high-precision large bearings offer smooth and wear-resistant operation. Additionally, the built-in high precision explosion-proof balance rotor is removable and replaceable.
• ⚡This Surpass Hobby motor utilizes a 4-pole, 12-slot rotor design to ensure robust torque and stable output power.

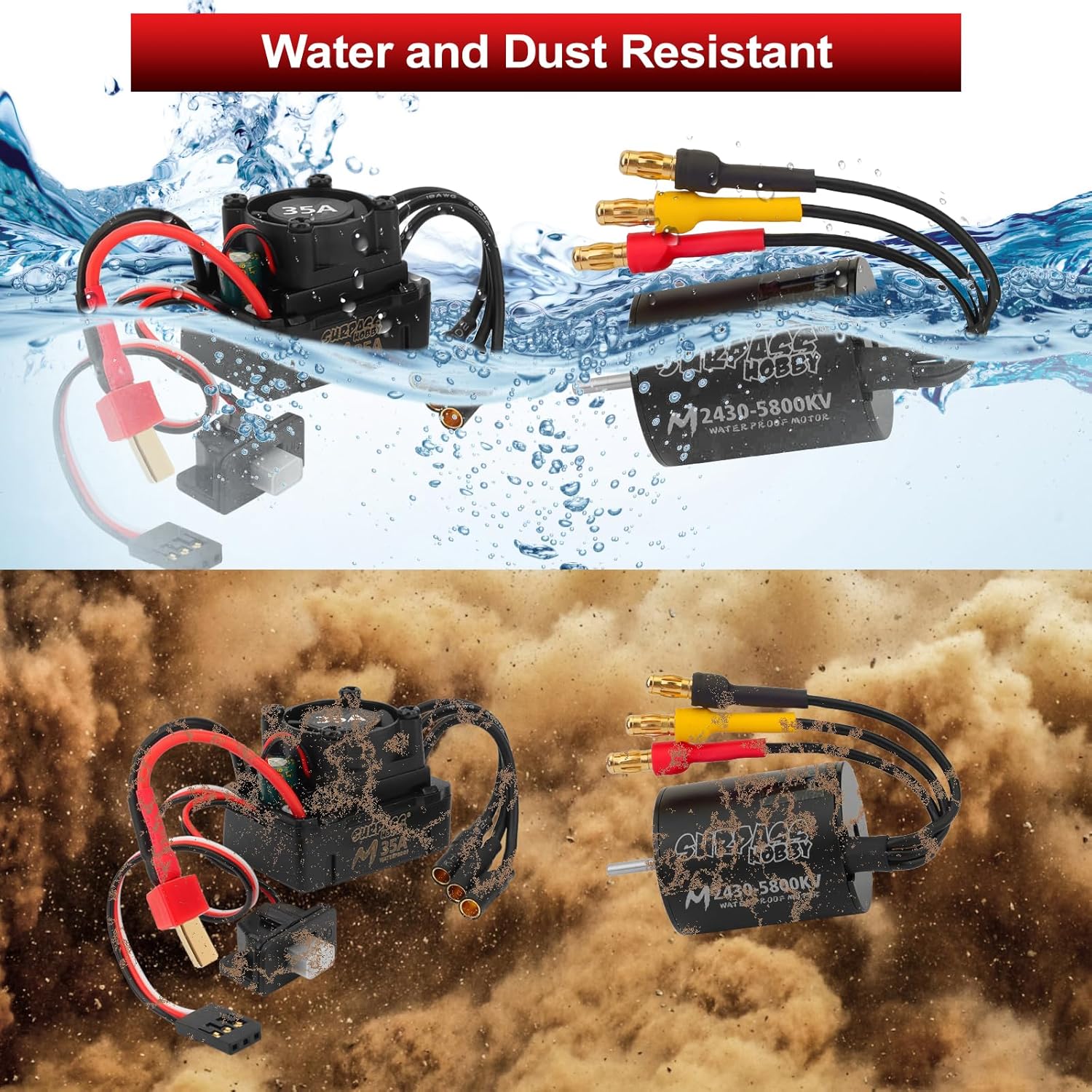

• ⚡The Electric Speed Controller features an all-weather water and dust resistant design, allowing for RC car handling in various environments (Note: Please remove the cooling fan before using this ESC in water; Clean and blow dry after use to prevent connector rust).
• ⚡This Waterproof Brushless ESC includes multiple protection functions such as overheat protection/throttle signal loss protection/motor blocking protection, along with strong current resistance and excellent heat dissipation. When protecting the motor, it will emit a buzzer sound and flash LED lights.
